Portable ECG Recorder Solutions
(Single-lead ECG/3-lead/6-lead/12-lead)
?ECG/heart rate measurement
?Real-time arrhythmia alarm
?ECG/EKG recording
?ECG analysis report
Supported modes

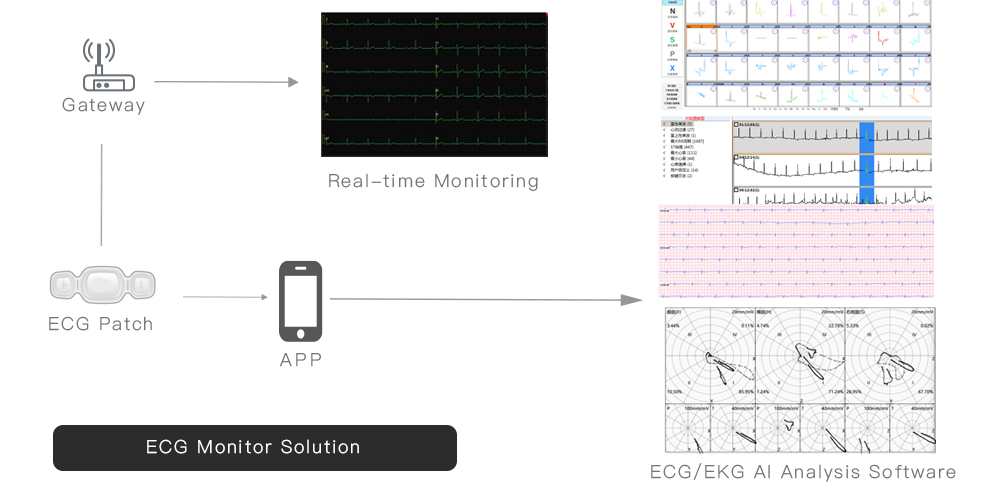

?Real-time telemetry monitoring mode
?Holter mode for offline storage
Comfortable to wear
? Ultra-light design, weight <9g
? Ultra-thin design, host <6mm, accessories <0.2mm
? Waterproof design, IPX7, shower, high-intensity exercise support
Long battery life
? Offline 32 hours record storage
? 24 hours monitoring
? Charge for 5 minutes, work for 2 hours
Safe and Reliable
?Medical biocompatibility verification, safe to use
? AES128bit dynamic encryption, safe transmission
? Medical grade material, quality and safety
Accurate and Effective
? Medical-grade ECG measurement technology and analysis algorithm
? Support FDA, CFDA, CE certification
? Up to 18 types of arrhythmia analysis
Arrhythmia Algorithm
1: Extreme bradycardia
2: Extreme tachycardia
3: Bradycardia
4: Tachycardia
5. Ventricular Tachycardia
6: Ventricular Bradycardia
7: Pause
8: Ventricular Fibrillation
9: Asystole
10: Ventricular Run(VT>2)
11: Ventricular Rhythm
12: Ventricular Couplets
13: Ventricular (PVC)
14: Ventricular Bigeminy
16: Ventricular Trigeminy
16: Multifocal PVCs
17: Nonsustained Ventricular Tachycardia
18: Irregular Rhythm
The standard that the algorithm conforms to
1. AHA, MIT, NST, CU standard database indicators that meet the requirements of YY0885-2013;
2. AHA, MIT, NST, CU, ESC standard database indicators that meet the requirements of IEC60601-2-47;
3. R wave detection, sensitivity ≥ 99.9%, positive positive ≥ 99.8%;
4. AF, ESe ≥ 72%, E+P ≥ 95%, DSe ≥ 70%, D+P ≥ 75%;
5. Support Single-lead/3-leads/6-leads/12-leads ECG
